Blogging with Emacs and Org

Wed 08/14/19


Sorry, your browser does not support SVG. Sorry, your browser does not support SVG.

Emacs has been taking over my computing experience.

I discovered evil-mode is a better vi emulator than vim.

I realized Emacs could let me have the same environment regardless of what platform I was on.

I studied elisp and configured my major modes so that all my common tasks are an easy key bind away.

But there remained one huge annoyance: This website was created with a hodgepodge of HTML, python, and markdown.

In this post I describe how I generate my site from Org source files.

If you aren't familar with emacs or org then here's a quick summary: Emacs is a lisp interpreter that comes with functions for editing text. It's a platform that allows you to build your own IDE. Org is an Emacs extension for writing, formatting, and publishing documents.

The benefit to using Org is that it integrates well with Emacs. Links are clickable and open in a new buffer, code blocks have the same syntax highlighting as they would in their own major mode buffer, and there are key bindings/functions available for most common tasks.

Changing markdown into org with elisp

The first step was to change my markdown files into org. I wrote a few functions that I could run from a markdown buffer that would do some of the tedious conversions for me.

First some helpers:

;;; A macro for moving point to start of buffer and saving the match data.
(defmacro goto-min-save-match-data (body)
  `(progn
    (goto-char (point-min))
     (save-match-data ,body)))

;;; Replace pattern with new in the current buffer
(defun replace-regex-current-buffer (pattern new)
  (goto-min-save-match-data
   (while (re-search-forward pattern nil t) nil t
          (replace-match new))))

Change some common tags over:

(defun replace-simple-md ()
  (interactive)
  ;; Change all the tabs to two spaces
  (replace-regex-current-buffer "\t" "  ")

  ;; Use 80 dashes for a line instead of 3
  (replace-regex-current-buffer "^---" (s-repeat 80 "-"))

  ;; Change lists
  (replace-regex-current-buffer "*" "+")

  ;; Convert image links from markdown syntax to org syntax
  (replace-regex-current-buffer "!\\[.+(\\(.+\\))" "[[file:../../\\1]]"))

My least favorite feature of markdown is the code syntax. In a markdown file, four spaces before a line means that it will be treated as a code block. This function captures the language tag in markdown code block, and wraps it in an Org source block.

;; Replaces a block like this
;;
;;     :::python
;;     print("Begone markdown")
;;
;; With:
;;
;;     #+BEGIN_SRC python
;;     print("Begone markdown")
;;     #+END_SRC
(defun replace-code-section ()
  (goto-min-save-match-data
  (save-match-data
    (while (re-search-forward "^[[:blank:]]+:::\\(\\w+\\)" nil t) nil t
           (replace-match "#+BEGIN_SRC \\1")
           (re-search-forward "^[[:alnum:]]")
           (move-beginning-of-line nil)
           (newline)
           (insert "#+END_SRC")
           (newline)))))

Finally, deindent the old markdown code blocks by 4 spaces.

(defun de-indent-code ()
  (interactive)
  (goto-min-save-match-data
   (while (re-search-forward "^[[:space:]]\\{4\\}" nil t) nil t
          (replace-match "")
          (next-line))))

Creating a Site Structure

Next I decided on a site structure. Most org-mode publishing examples show the directory containing the HTML separate from the source files.

E.G. ~/projects/personal-website => ~/public_html

I wanted the HTML to be in the same directory as the org source. The trick is a src/ folder that mirrors the parent directory.

.
├── index.html
├── blog.html
├── style.css
├── includes.css
├── images
├── lambda/ <aws lambda handlers>
├── logo/  <svg logos>
├── posts
│   ├── <post_name>.html
│   ├── style.css
│   ├── js/
│   └── old/
├── scripts/ <shell scripts for interacting with aws>
└── src
    ├── site.el
    ├── index.org
    ├── blog.org
    └── posts
        └── <post_name>.org

org-publish-project-alist is an association list variable that tells org how to publish the site. You can configure it with a list of components that make up the project. I split my website into two components: main, and posts.

(setq org-publish-project-alist
      `(("personal-website"
         :components ("main" "posts"))
        ("main"
         :publishing-directory "~/projects/personal-website"
         :base-directory "~/projects/personal-website/src")
         :publishing-function org-html-publish-to-html
        ("posts"
         :publishing-directory "~/projects/personal-website/posts"
         :base-directory "~/projects/personal-website/src/posts"
         :publishing-function org-html-publish-to-html)))

Setting a header / footer and including style

Next I configured the publisher to include a header and footer in every page. I wanted these to look the same on all the pages. You can specify these by setting the html-postamble and html-preamble properties in the project association list.

You can also set the content that is inserted in the <head> tag. I used this to include CSS files. I split up my CSS into 3 files:

includes.css
Style the header and footer that is included in both components.
style.css
Style the main component.
posts/style.css
Style the posts.

I made the header a simple link that goes back up a level.

For the footer I added links to Emacs/Org, their logos, their respective versions that were used, and the date the file was last exported. For the posts component, I also add a noscript tag for comments.

;; Style components
(defconst html-style "<link rel=\"stylesheet\" type=\"text/css\" href=\"style.css\" />")

;; Set main <head>
(defconst html-main-head
  (concat "<link rel=\"stylesheet\" type=\"text/css\" href=\"includes.css\" />" html-style))

;; Set posts <head>
(defconst html-posts-head
  (concat "<link rel=\"stylesheet\" type=\"text/css\" href=\"../includes.css\" />" html-style))

(defun postamble-text (text)
  "Wraps TEXT in a span with class postamble-text."
  (format "<span class=\"postamble-text\">%s</span>" text))

(defun postamble-version (version)
  "Wraps VERSION in a span with class version-number."
  (format "<span class=\"postamble-text version-number\">%s</span>" version))

(defconst html-postamble
  (concat
   "<span id=\"made-with\">"
   (postamble-text "powered by&nbsp;&nbsp;")
   "<a href=\"https://www.gnu.org/software/emacs\">"
   "<img src=\"../logo/emacs.svg\" id=\"emacs-logo\" alt=\"Emacs\">"
   "</a>"
   (postamble-version emacs-version)
   "&nbsp<a href=\"https://orgmode.org\">"
   "<img src=\"../logo/org-mode.svg\" id=\"org-mode-logo\" alt=\"Org\">"
   "</a>"
   (postamble-version org-version)
   "</span>"
   "<span id=\"published\">"
   (format "exported on %s" (format-time-string "%M/%D/%Y"))
   "</span>"))

(defconst html-postamble
  (concat
   "<span id=\"made-with\">"
   (postamble-text "powered by&nbsp;&nbsp;")
   "<a href=\"https://www.gnu.org/software/emacs\">"
   "<img src=\"../logo/emacs.svg\" id=\"emacs-logo\" alt=\"Emacs\">"
   "</a>"
   (postamble-version emacs-version)
   "&nbsp<a href=\"https://orgmode.org\">"
   "<img src=\"../logo/org-mode.svg\" id=\"org-mode-logo\" alt=\"Org\">"
   "</a>"
   (postamble-version org-version)
   "</span>"
   "<span id=\"published\">"
   (format "%s" (format-time-string "%m/%e/%y"))
   "</span>"))

(defconst html-posts-postamble
  (concat
   html-postamble
   "<noscript><div id=\"no-script-comment-message\">Enable scripts to see and post comments.</div></noscript>"
   "<script type=\"text/javascript\" src=\"js/comments.js\"></script>"))

I disabled some of the default org publishing behavior such as their included CSS/JavaScript, table of contents, and section numbers.

Completed org-publish-project-alist

(setq org-publish-project-alist
      `(("personal-website"
         :components ("main" "posts"))
        ("main"
         :publishing-directory "~/projects/personal-website"
         :base-directory "~/projects/personal-website/src"
         :publishing-function org-html-publish-to-html
         :section-numbers nil
         :with-toc nil
         :with-title nil
         :html-head ,html-main-head ;; The , is so the macro evaluates the expression (because it uses concat).
         :html-preamble "<a href=\"/\">Nicolas Knoebber</a>"
         :html-postamble ,html-postamble
         :html-head-include-scripts nil
         :html-head-include-default-style nil)
        ("posts"
         :publishing-directory "~/projects/personal-website/posts"
         :base-directory "~/projects/personal-website/src/posts"
         :publishing-function org-html-publish-to-html
         :section-numbers nil
         :with-toc nil
         :html-head ,html-posts-head
         :html-head-include-scripts nil
         :html-head-include-default-style nil
         :html-preamble "<a href=\"../blog.html\">Blog</a>"
         :html-postamble ,html-posts-postamble
         )))

I added all of this elisp to src/site.el. Finally I created a key bind to load this file and publish all of my org files. This is convenient when I change site.el and I need to update the output HTML.

Addition to init.el

(defun publish-site ()
  "Build nicolasknoebber.com."
  (interactive)
  (load-file "~/projects/personal-website/src/site.el")
  (org-publish "personal-website" t)) ;; Add t to force all files to republish.

(with-eval-after-load "org"
  (define-key org-mode-map (kbd "C-c c") 'publish-site))

When I don't need to republish all the files, I use org-publish-current-file from within the org buffer that I'm editing.

Results

This is a great improvement from my previous system. The main benefits are ease of publishing, and a better environment for writing.

A frustration I had with markdown was accidentally creating dead links while writing, and not knowing until I exported it. Now creating links is a streamlined process:

  1. Type C-c C-l to call org-insert-link
  2. Select file: which opens Helms fuzzy file finder
  3. Find my file and name the link
  4. Click the new link, which opens the contents in a new buffer

Emacs will even display images. Web links are also clickable and open in your default browser.

Another frustration I had was syntax in exported code blocks. I was using pygments, which did a nice job usually. However, it was a pain to change color schemes, and exported code always looked different than it did in my editor.

Now exported code looks the same as it does in Emacs:

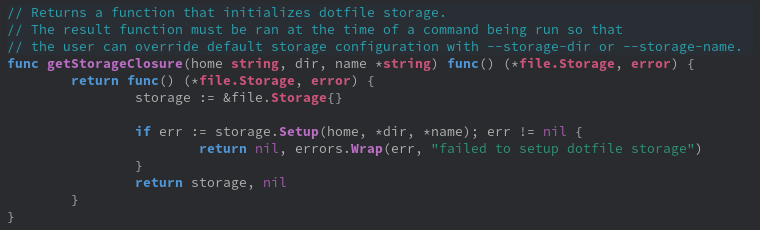

Screenshot of Golang code in Emacs go-src.png

Exported Golang code

// Returns a function that initializes dotfile storage.
// The result function must be ran at the time of a command being run so that
// the user can override default storage configuration with --storage-dir or --storage-name.
func getStorageClosure(home string, dir, name *string) func() (*file.Storage, error) {
        return func() (*file.Storage, error) {
                storage := &file.Storage{}

                if err := storage.Setup(home, *dir, *name); err != nil {
                        return nil, errors.Wrap(err, "failed to setup dotfile storage")
                }
                return storage, nil
        }
}

Overall I'm happy with the results and will most likely continue to use Emacs+Org as a static site generator.
